Ring-type LED

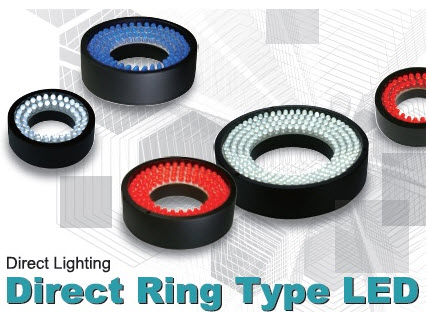

This light features 360 degrees of shadow-free illumination from high-luminance LEDs in a high-density arrangement. This allows for LED lighting of a wide range of applications. These include positioning of substrates and printed boards, inspection of chip components, liquid crystal adjustment, and inspection of plastic containers and labels. The angle of the lights (30 degrees) is flatter than the Low Angle Ring-type (60 degrees), illuminating almost vertically upon the target. DR-70/35 models illuminate at a completely vertical angle, perpendicular to the object.



Available Models: 30 degrees (working distance 3-7 cm)

Model Color Power consumption Weight Diameter
(click for diagram)
DR-42/18R Red 12V/1.4W 36g 18mm (inner)
42mm (outer)
DR-42/18W/B/G White/Blue/Green 12V/2.1W
DR-50/28R Red 12V/2.2W 45g 28mm (inner)
50mm (outer)
DR-50/28W/B/G White/Blue/Green 12V/3.2W
DR-67/36R Red 12V/3.9W 83g 36mm (inner)
67mm (outer)
DR-67/36W/B/G White/Blue/Green 12V/5.8W
DR-90/50R Red 12V/7.7W 138g 50mm (inner)
90mm (outer)
DR-90/50W/B/G White/Blue/Green 12V/11.6W

Available Models: 0 degrees (completely vertical; working distance 5-10 cm)

Model Color Power consumption Weight Diameter
(click for diagram)
DR-70/35R Red 12V/4.3W 97g 35mm (inner)
70mm (outer)
DR-70/35W/B/G White/Blue/Green 12V/6.4W
